WP waterproof connector cable

WP WATERPROOF CONNECTOR

This WP waterproof connector can be used for the place of which especially waterproof is required.
This is the wire-to-wire connector that is grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529).
• Waterproof performance
• Contained seal ring
• Solid rubber seal
• Double-spring construction
• Housing-to-terminal locks
• Inner-housing lock

Applications:
Domestic Appliance
Automotive
Power
Vending
Air Conditioning

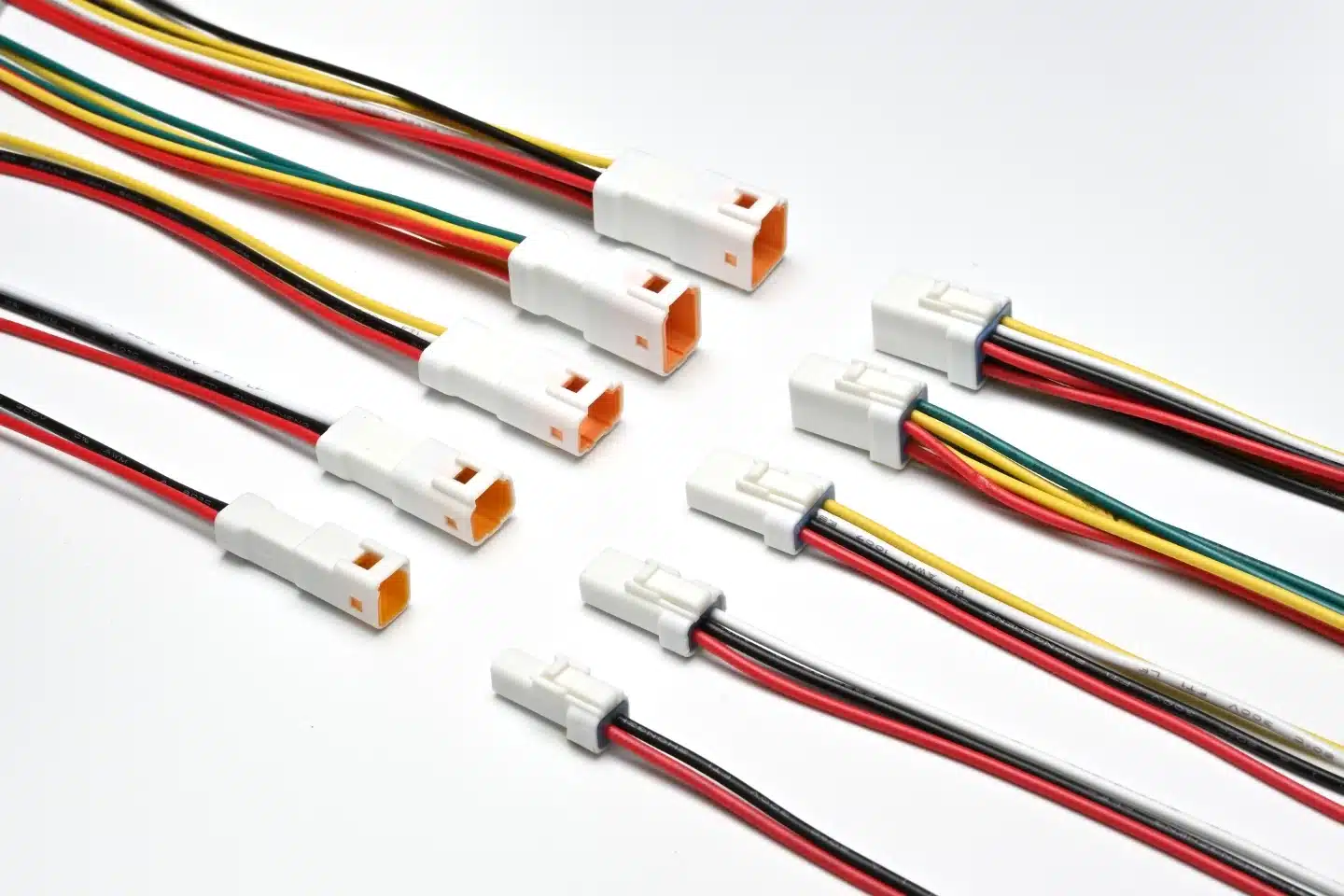

JWPF Waterproof Connector Lines: A Comprehensive Guide

JWPF waterproof connector lines are a popular choice for many industries due to their superior contact performance and waterproof capabilities. These connectors are designed to withstand harsh environments and provide reliable connections in a variety of applications.

Features and Benefits

The JWPF connector line features a double-leaf construction consisting of a main and assist leaf spring, which provides superior contact performance. The housing lances and inter-housing lock ensure secure locking and waterproofing. The connector line has a pitch of 2.0 mm, a current rating of 3A (AWG#22), and a voltage rating of 100V.

JWPF connector cable Applications

JWPF waterproof connector lines are used in a variety of applications, including automotive, industrial, and consumer electronics. These connectors are ideal for applications that require reliable connections in harsh environments, such as outdoor lighting, marine electronics, and automotive lighting.

Installation

The JWPF waterproof connector cable is easy to install and terminate. The compact size and solid wire seal make it easy to handle, and the connector line is flexible and cost-effective. The connector line is rated IP67, which means it is waterproof and can withstand immersion in water up to 1 meter deep for 30 minutes.

Conclusion

JWPF waterproof connector lines are a reliable and cost-effective solution for many industries. With their superior contact performance and waterproof capabilities, these connectors are ideal for applications that require reliable connections in harsh environments. If you’re looking for a connector line that can withstand the elements and provide reliable connections, the JWPF waterproof connector line is an excellent choice.
