MR30 Connector – High-Performance Triple-Point Power Interface

Fongkit manufactures MR30 connectors featuring an innovative triple 2mm gold-plated bullet design, engineered for stable 20A power transmission in demanding environments.

Core Technology Innovations

🔥 Triple-Point Contact System
• 2mm gold-plated bullet contacts (↑200% contact area vs single-point)
• Copper-gold alloy base (resistance <1.2mΩ)
• PA66 nylon housing (UL94 V-0 flame-retardant)

❄️ Extended Temperature Range
Full-power operation from -20°C to 120°C for extreme conditions

🛡️ Mechanical Reliability
• Self-aligning triple-point design (±1.5mm misalignment tolerance)
• 500+ mating cycle durability

Technical Specifications

Product Line Configuration

MR30 Components

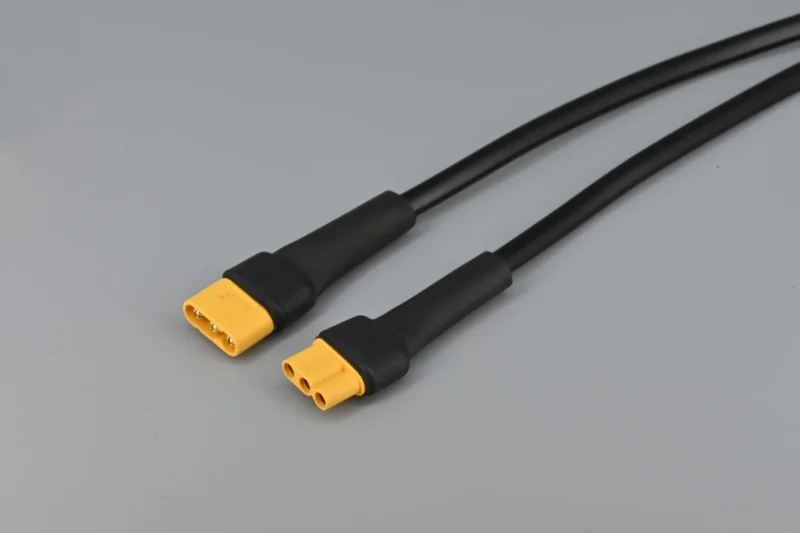

• MR30 Male Connector

•

• MR30 Female Connector

•

MR30 Cable Assemblies

✔Cable: 16~22AWG wire
✔ Custom lengths: 0.1m~5m
✔ Termination: Crimp/solder/PCB direct-mount

Application Visuals

FAQ

Q: Are MR30 plugs compatible with XT60 connectors?
A: Not directly, but we provide custom MR30 connector cables with XT60 adapters.

Customized to Your Needs

We offer customized cable assemblies where you can specify the type of connector on one end, while the other end can be left bare or customized according to your needs.
